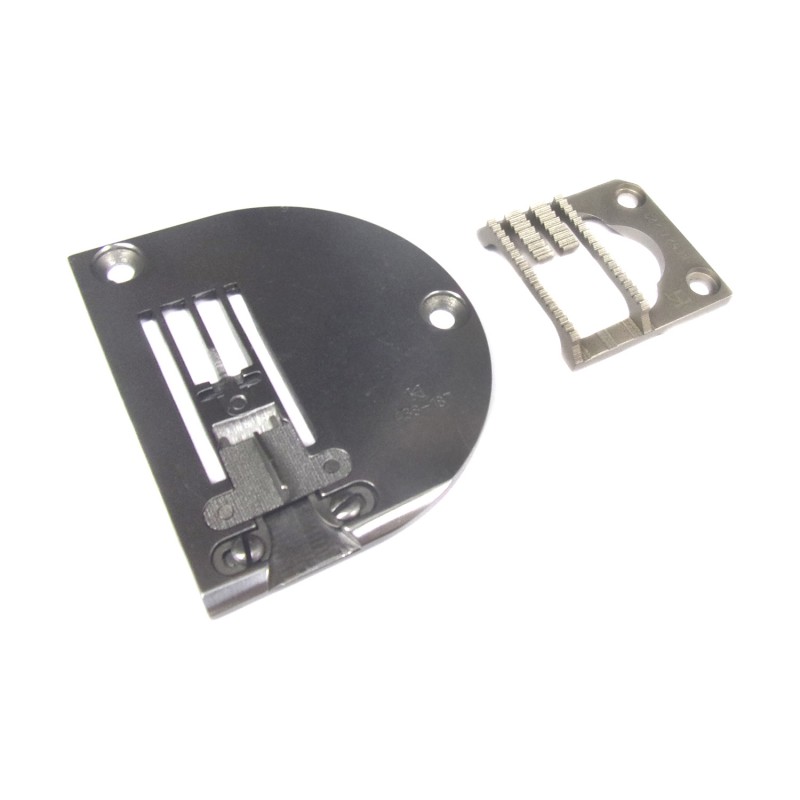

KN438187 Needle Plate + KF527-223 Feed Dog — Needle Plate and Feed Dog for Durkopp Adler 527i Suitable for butt seam and tape guiding. There is a groove for tape input at the front of needle plate. The groove size is adjustable with a pair of guides (max. width 7.5mm). One more guiding is on the top of the groove. It is a center guide helping the operator to do the butt seam. There is a removable supporter on the needle hole (2.5mm wide). It is helpful for butt seam and thin material. KN438187 Needle Plate with Supporting Finger Needle Hole Size: 10.3 x 1.7mm KF527-223 Feed Dog Teeth Width : 16.5mm Teeth : 4 rolls
Size / option
(3)
Seller offers
There are no published seller offers yet.
Description
Needle Plate and Feed Dog for Durkopp Adler 527i Suitable for butt seam and tape guiding. There is a groove for tape input at the front of needle plate. The groove size is adjustable with a pair of guides (max. width 7.5mm). One more guiding is on the top of the groove. It is a center guide helping the operator to do the butt seam. There is a removable supporter on the needle hole (2.5mm wide). It is helpful for butt seam and thin material. KN438187 Needle Plate with Supporting Finger Needle Hole Size: 10.3 x 1.7mm KF527-223 Feed Dog Teeth Width : 16.5mm Teeth : 4 rolls
Russian name
KN438187 Игольная пластина + KF527-223 транспорёр
Official Cerliani data
Compatible sewing machines
| Manufacturer | Machine class |
|---|---|
| DÜRKOPP-ADLER | 527I |
Source: Cerliani catalogue
Specifications
| BRAND | KWOKHING |
|---|---|
| SAP_NUMBER | KN438187 + KF527-223 |
| MORE_PHOTO | ["89667", "89668"] |
