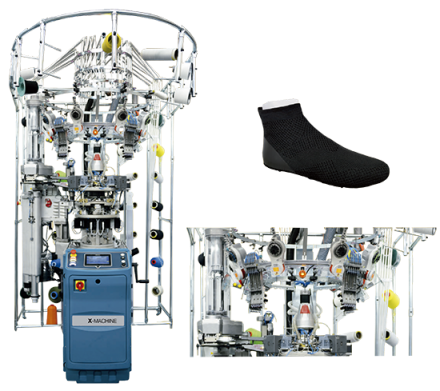

Elettrotecnica BC Mod BC2018X Machine for the realization of the upper in 3D

Machine for the realization of the upper in 3D. Single cylinder electronic knitting machine with 4 reciprocating-motion feeds and 2 points of selection per feed and rotation sense, which knits various technical Intarsia items. This system, patented, allows the possibility of patterning on all 4 feeds giving high definition and a sharpness of colour. MAXIMUM SPEED: 180 rpm in unidirectional motion. CYLINDER SELECTION: Selection on the cylinder through actuators with 12 levels (8 in total: two for each feeder for both rotation senses). SINKER CAP SELECTION: Actuators with 6 levels (4 in total per sinker selection). STRIPPING YARNFINGERS: 6 multi-position yarnfingers per feed. TRAPPER FOR BARE AND COVERED ELASTIC YARN: 3 trappers per feed. DIAL JACKS AND YARN CUTTER: Yarn cutter saw release with up and down dial movement, driven by step motor to reposition the saw blade height. SUCTION SYSTEM: Take-down aspiration by 2 suction fans or a central suction system. Items suction tube Ø 60 mm. Items transfer tube Ø 60 mm. Air limiting valve with electronic incremental programming STITCH CAMS: Stitch formation adjustment by step motors, independent on each feed. Possibility of loop widening, tightening and shading on the same area and/or course. Step motor to reposition cylinder height. On board items sizing, adjustable in both cm. and inches. MAIN KNITTING POSSIBILITIES: Single or double welt carried out by dial jacks, in several selections, with knitted and laid-in elastic yarn. With 4 feeds on the same course: patterns and/or supports placed with Intarsia technology, eliminating cut yarns inside the item. Every knitted pattern has up to 3 technical ways. 4 feed selectable terry in both rotational senses. SINKER CAP: Closed-tracks cam box with angle cams position driven by a step motor for precise loop/stitch control YARN FEEDERS: 6 mechanical yarn recoveries per each feeder (24 in total). OPTIONAL: Elastic feeders with step motor. EFS920 Memminger – IRO for yarn recovery. YARN SENSORS: Latest generation of optical yarn sensors. CREEL: With rear yarn rack. LUBRICATION: Pneumatic pump with oil recycling. MACHINE MOVEMENT: Torque Motor. ELECTRONIC CONTROLLER: Integrated ‘quad core’ from Dinema for the serial checking of all electronic systems. Latest generation of graphic display with a colour touch screen. PROGRAMMING: Software S.I.S. Plus with totally graphical integrated programming. TECHNICAL DETAILS Diameter: 4" Needle No.: 96 - 108 - 120 - 120 - 132 - 144 Needle Gouge (GG): 18 - 18 - 18 - 24 - 24 - 24 - Machine Gouge (GG): 8 - 9 - 10 - 10 - 11 - 12
