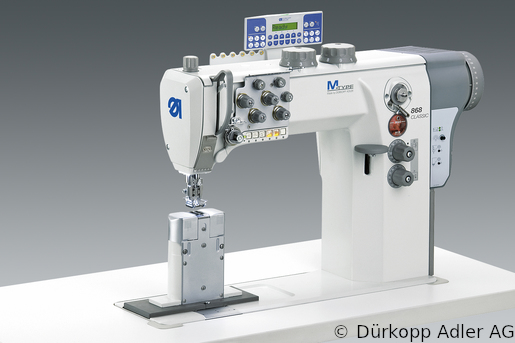

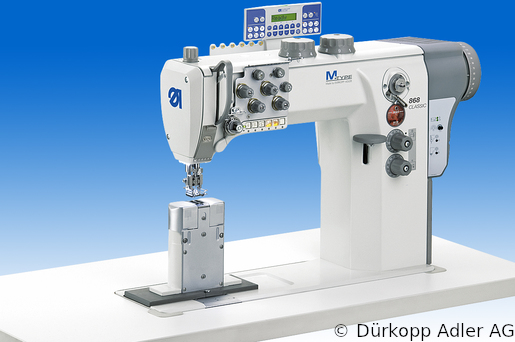

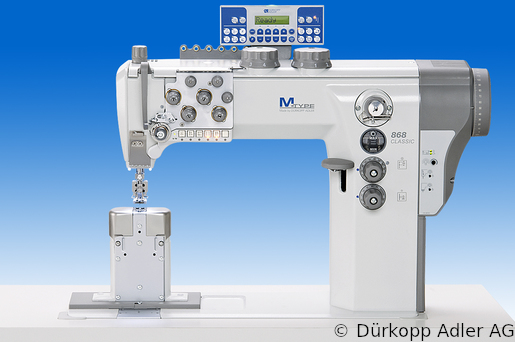

868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 076)
Seller offers
There are no published seller offers yet.
Description
Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and
alternating foot top feed.

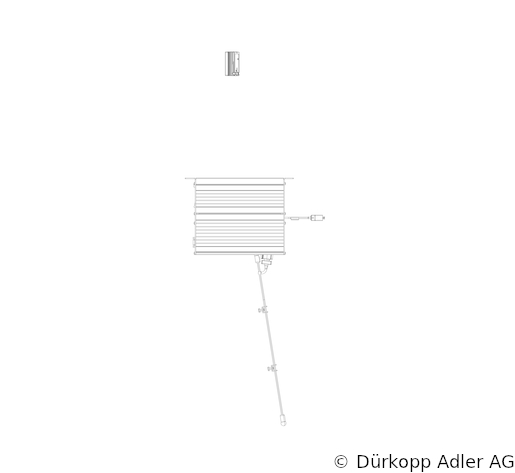

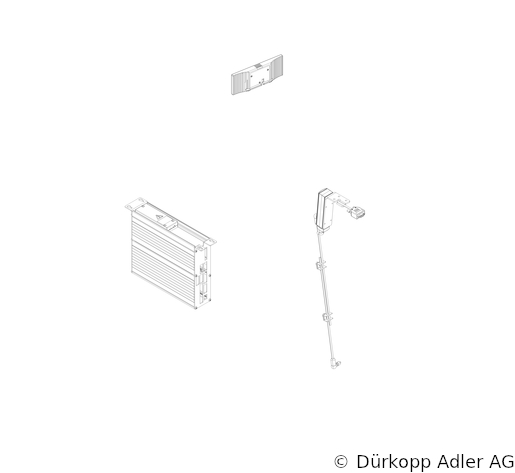

Features: integrated sewing drive incl. DAC classic control box and
operation panel OP1000 lockstitch sewing head with light barrier for
flap-length control, electropneumatic quick stroke, electropneumatic
seam backtacking, electropneumatic sewing foot lift,
integrated 2. stitch length, integrated sewing light LED, safety clutch,
add. electropneumatik switchable thread tension
large, two-piece vertical hook
Operation purpose: for topstitching of closing seams
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 110, 120, 130, 140
Needle distance (mm): 10,0.

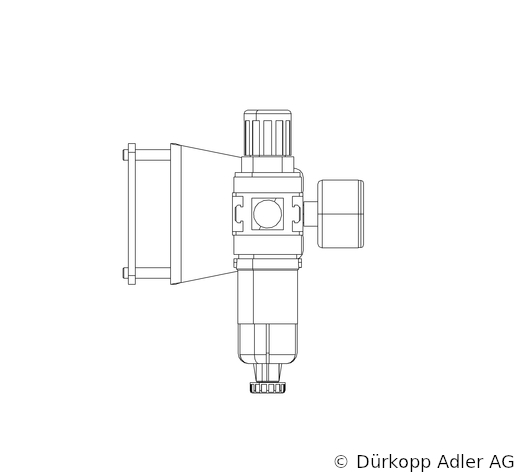

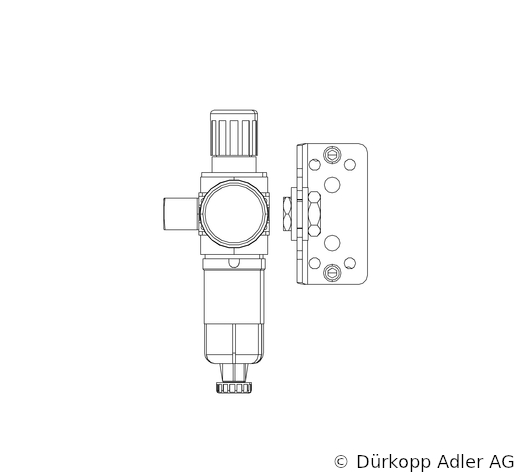

WE-8 MAINTENANCE UN [9780 000108]:
Maintenance unit

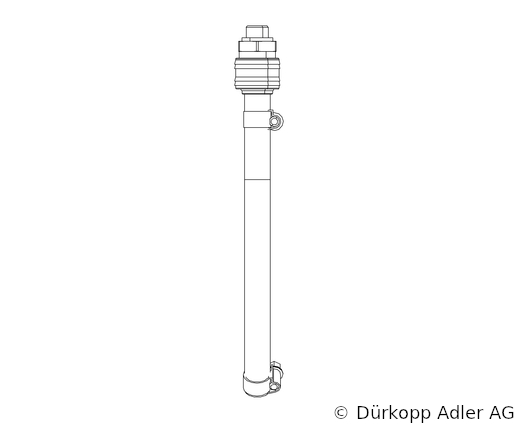

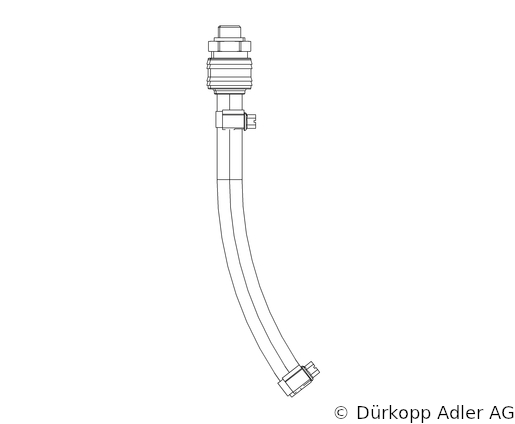

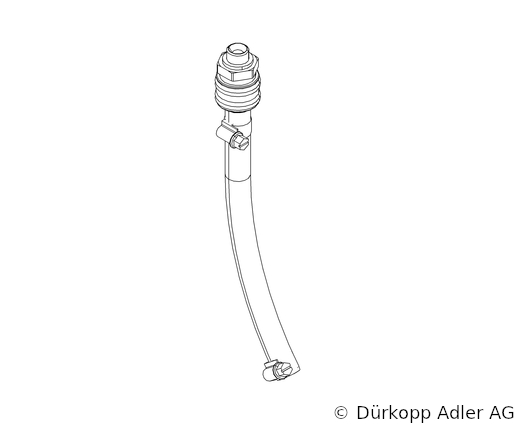

PNEUMATIC CONNECTIO [0797 003031]:
Pneumatic connection package
ENP 10-1 Electronic hand wheel [0867 590684]:
Electronic Needle Positioning (Electronic hand wheel)

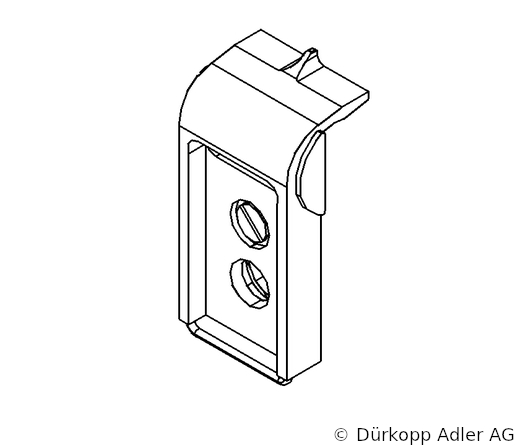

thread nipper [0867 590984]:
thread nipper
stand set w.table 1060*600 [MG55 400374]:
Stand kit with table top 1060 x 600 mm for DC sewing motor. Inclined
base not neccessary.
N522 005032 tape guide [N522 005032]:
for attaching of seam tape from below, for 10 mm needle distance, tape
width 16 mm, tape clearance 1,0 mm
Russian name
868-290322-M Двухигольная машина челночного стежка с колонковой платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0868 990209 076)
Specifications
| ART | 0868 990209 076 |
|---|---|
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |
| MATERIALS | ["0868 990209", "9800 210001 R", "0791 868504", "0791 868751", "0791 868741 EN", "0868 E05309 10", "0797 003031", "0867 590684", "0867 590984", "9780 000108", "MG55 400374", "N522 005032"] |
| MORE_PHOTO | ["268822", "268823", "268824", "268825", "268826", "268827", "268828", "268829", "268830", "268831", "268832", "268833", "268834", "268835", "268836", "268837", "268838"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 2 |
| TIP_CHELONOKA | Большой, двойной вертикальный челнок |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | Колонковая |
| PROIZVODITEL | Dürkopp Adler |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| VYSOTA_PODEMA_LAPKI | 20 |
| PRIMENENIE_PO_OPERATSIYAM | Для отделочной строчки |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110"] |
| MEZHIGOLNOE_RASSTOYANIE_MM | 10 |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 2500 |
| PRIVOD | Встроенный швейный привод включая DAC классический блок управления и панель управления OP1000 |
| ELEKTROPODKLYUCHENIE | 1 x 190-240 V 50/60Hz |
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| KLASS | 868 |
| SUBKLASS | 290322-M |
