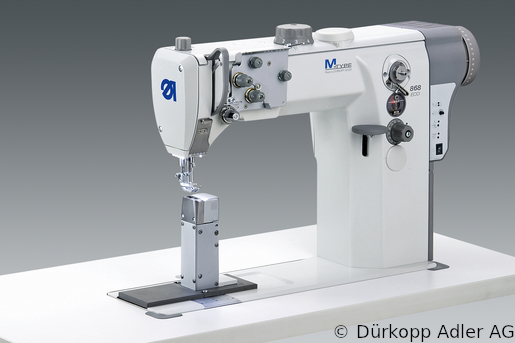

868-190020-M Dürkopp Adler 1-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990201 008)

Name: 868-190020-M Dürkopp Adler 1-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990201 008)
Brand: Durkopp Adler
SKU: 0868 990201 008
Price: 11119.50 EUR
Availability: BackOrder

SKU: 0868 990201 008

Seller offers

There are no published seller offers yet.

Description

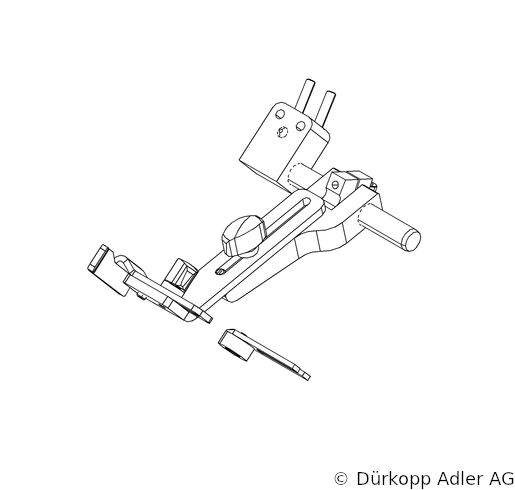

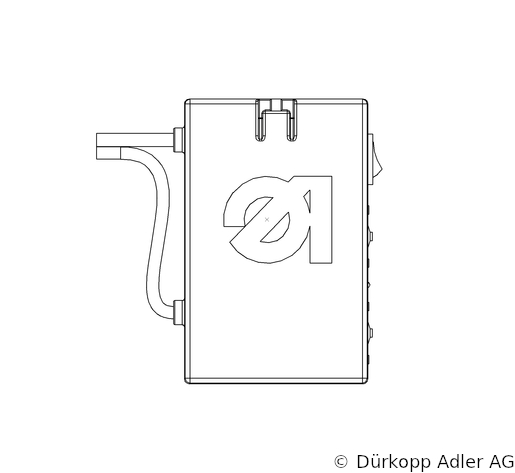

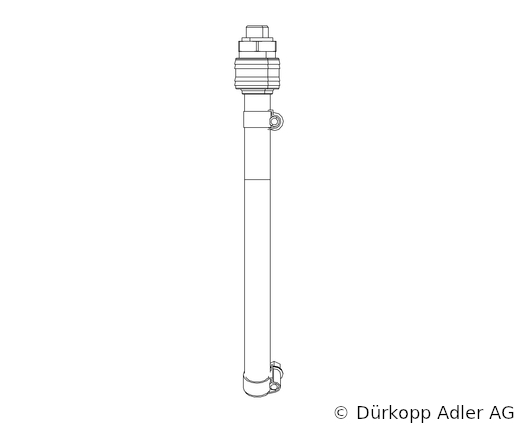

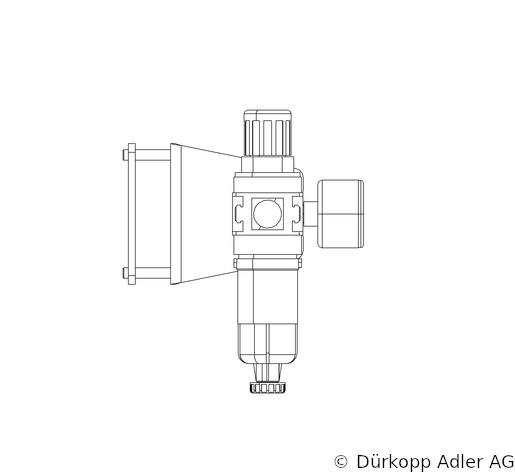

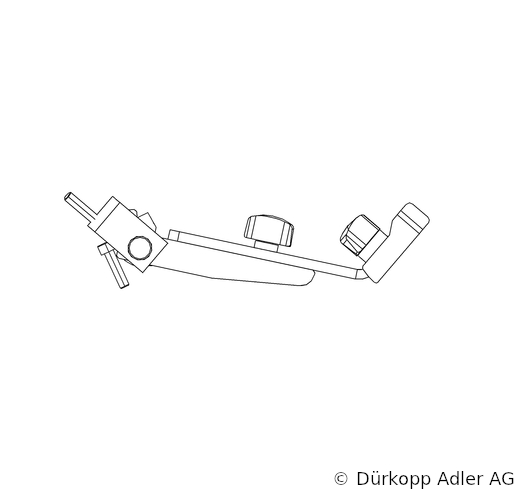

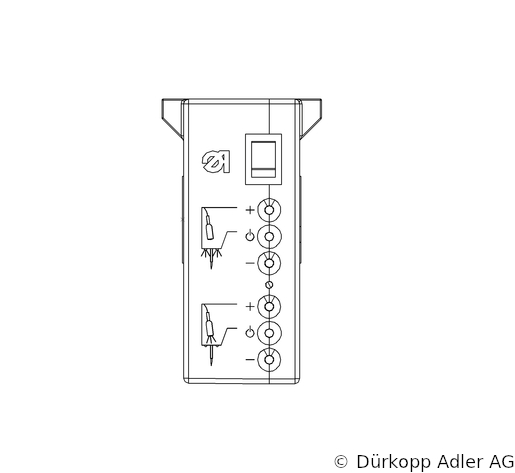

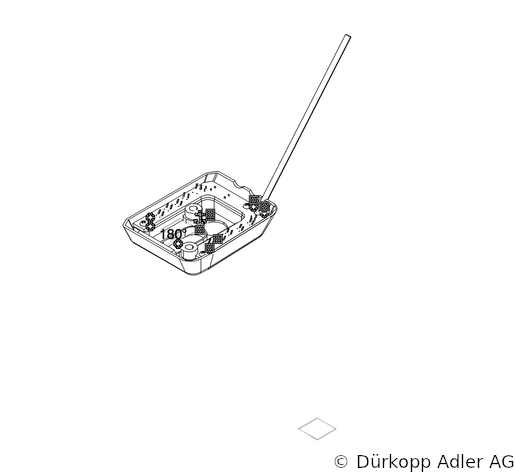

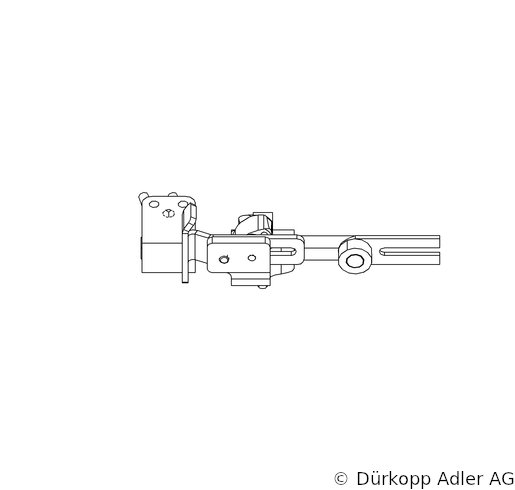

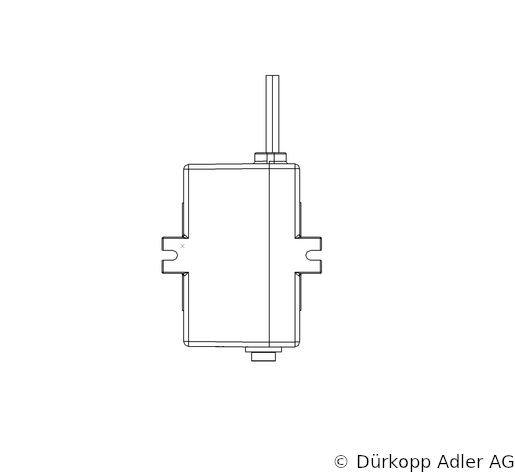

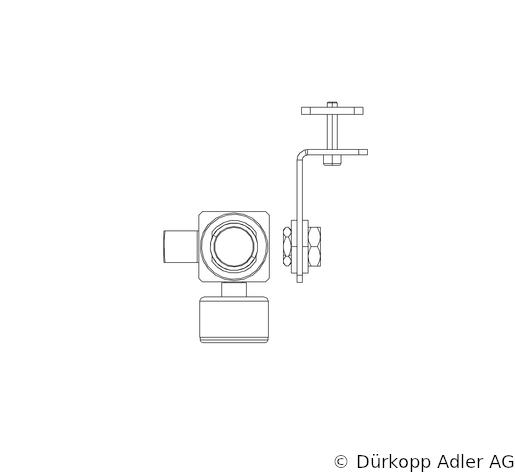

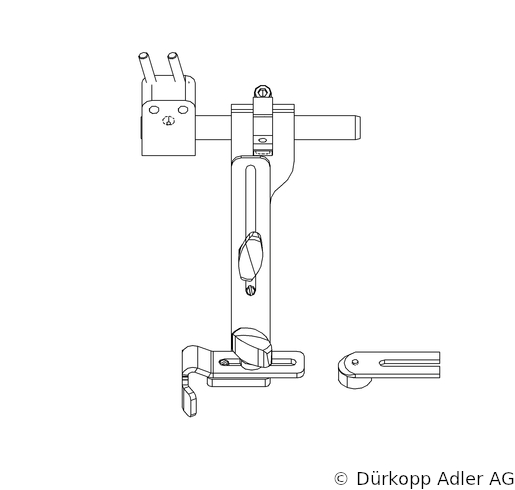

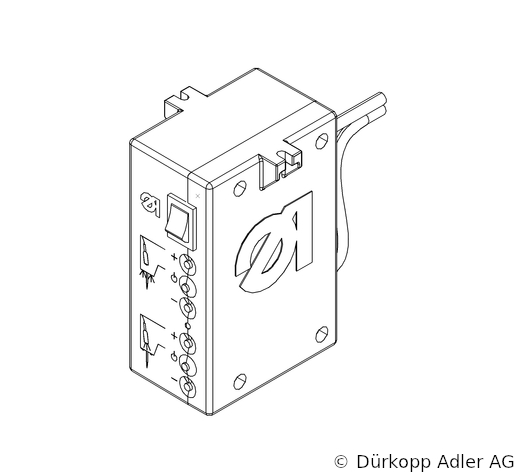

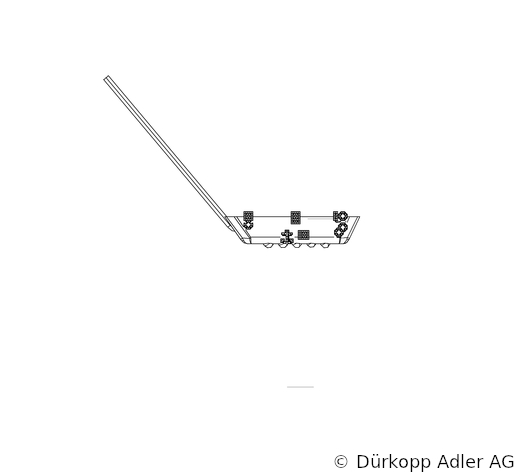

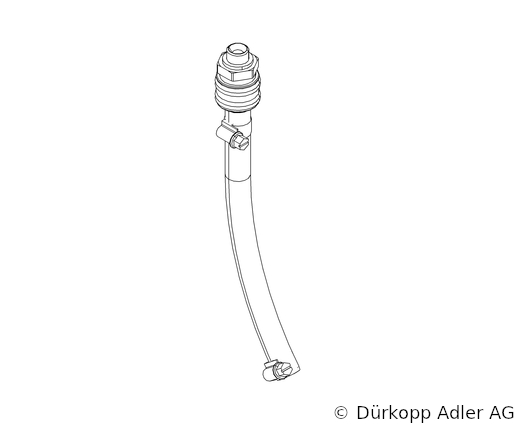

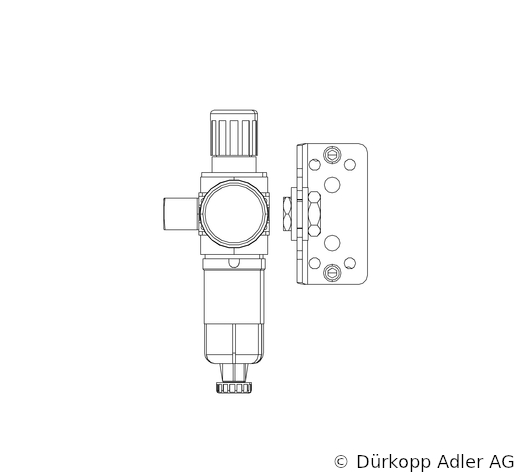

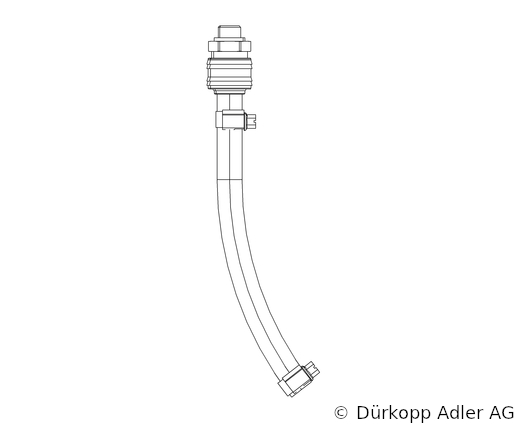

Dürkopp Adler 1-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed. Features: integrated sewing drive incl. integrated DAC eco M-TYPE control safety clutch large, two-piece vertical hook Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 140, 150, 160, 170, 180. WE-8 MAINTENANCE UN [9780 000108]: Maintenance unit SEWING LIGHT [9880 867102]: Integrated sewing light (LED) POWER SUPPLY [9850 001089]: Sewing light transformer for dimmable LED sewing lights PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package Pneu. foot lift [0867 590354]: Pneumatic sewing foot lift stand set w.table 1060*600 [MG55 400374]: Stand kit with table top 1060 x 600 mm for DC sewing motor. Inclined base not neccessary. SPACER [N800 080001]: right, with roll, can be swivelled upwards

Russian name

868-190020-M Одноигольная машина челночного стежка с колонковой платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0868 990201 008)

Specifications

MATERIALS	["0868 990201", "0791 868501", "0791 868750", "0791 868741 DE", "0868 E00109", "9780 000108", "9880 867102", "9850 001089", "0797 003031", "0867 590354", "0868 990201 ZM", "MG55 400374", "N800 080001"]
MORE_PHOTO	["279670", "279671", "279672", "279673", "279674", "279675", "279676", "279677", "279678", "279679", "279680", "279681", "279682", "279683", "279684", "279685", "279686", "279687", "279688", "279689"]
TYPE_STICH	Челночный
KOLICHESTVO_IGL	1
TIP_CHELONOKA	Большой, двойной вертикальный челнок
OSNOVNYE_TEKHNICHESKIE_KATEGORII	Колонковая
PROIZVODITEL	Dürkopp Adler
TIP_TRANSPORTA	Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
VYSOTA_PODEMA_LAPKI	20
MATERIAL	Средние
TOLSHCHINA_IGLY_NM	["140", "150", "160", "180", "170"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH	2500
ART	0868 990201 008
PRODUKTSIYA	["Мягкая мебель", "Кожгалантерея"]
PRIVOD	Встроенный швейный привод включая встроенный DAC eco M-TYPE блок управления
ELEKTROPODKLYUCHENIE	1 x 190-240 V 50/60Hz
MAKSIMALNAYA_DLINA_STEZHKA_V_MM	9
AVTOMOBILESTROITELNYE_SHVEYNYE_OPERATSII	["Подготовка / Сборка подлокотника", "Изготовление подголовника"]
KLASS	868
SUBKLASS	190020-M
