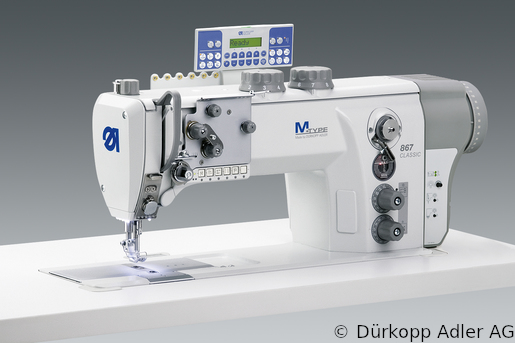

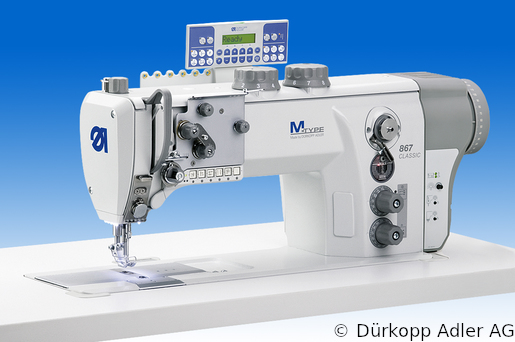

867-190445-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 990216 052)
Seller offers
There are no published seller offers yet.
Description
Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and
alternating foot top feed.

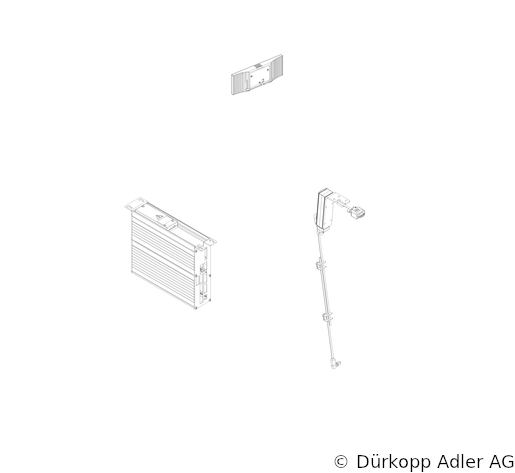

Features: integrated sewing drive incl. DAC classic control box and
operation panel OP1000 electromagnetic thread clamp, electromagnetic
short thread trimmer with a remaining thread length of approx. 5 mm,
electropneumatic quick stroke, electropneumatic seam backtacking,
electropneumatic sewing foot lift, integrated 2. stitch length,
integrated sewing light LED, fixable adjusting elements, safety clutch,
add. electropneumatik switchable thread tension oversized, two-piece XXL
vertical hook
Maximum Stitch Length (in mm): 9,00
Needle thickness (nm): 110, 120, 130, 140.

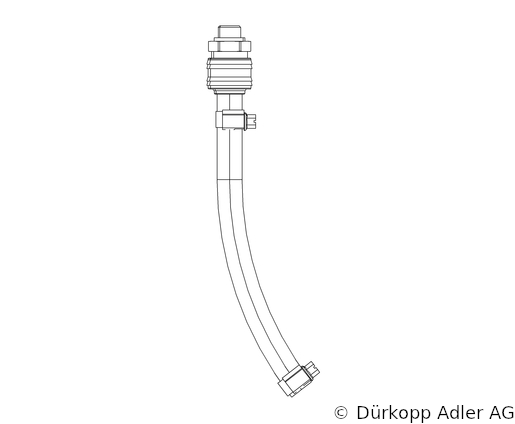

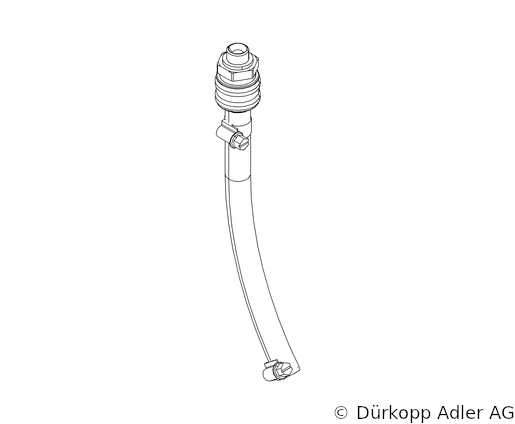

PNEUMATIC CONNECTIO [0797 003031]:
Pneumatic connection package

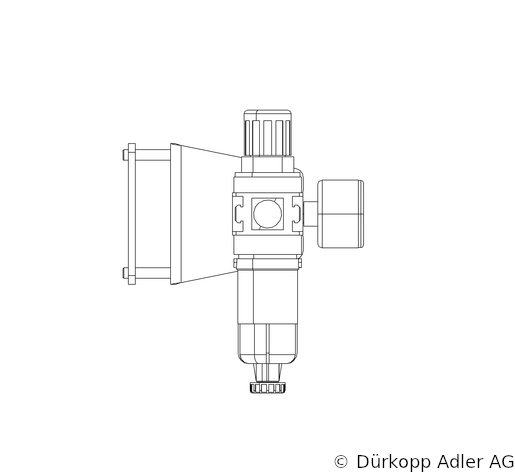

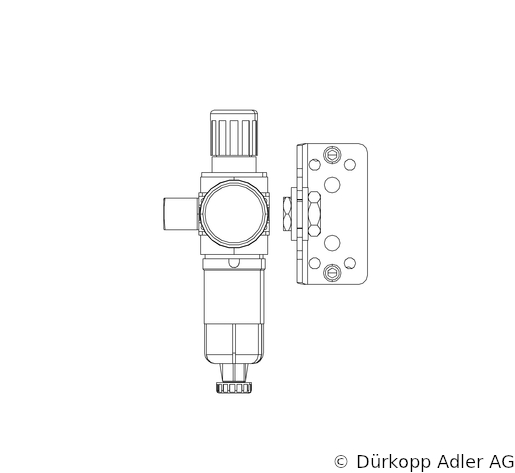

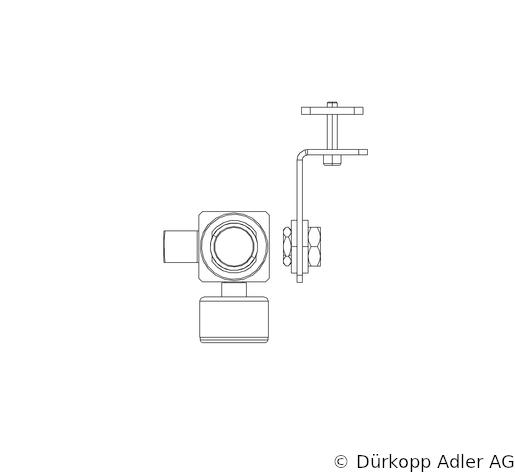

WE-8 MAINTENANCE UN [9780 000108]:
Maintenance unit
SEWING LAMP LED [9880 867103]:
1-LED-sewing light 3 W, incl. attaching parts, (without transformer)

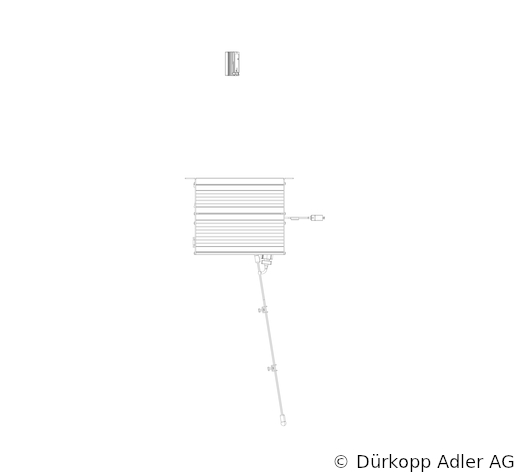

stand set [MG58 000602]:
Stand, electric height adjustable

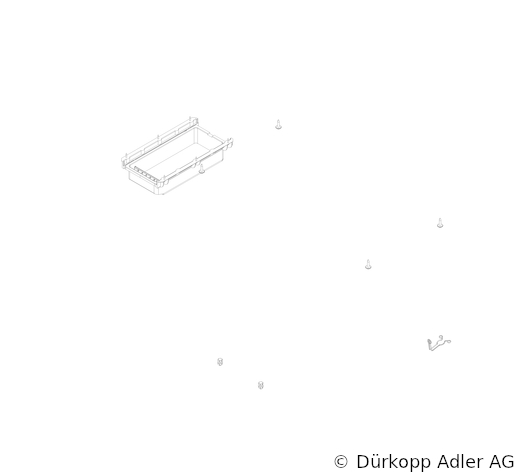

fastening parts [MG53 007511]:
Mounting parts set
pedal KES K20 [MG58 002523]:
Pedal “K20” (for sitting-down or standing-up operation)
KIT [9880 867051]:
Parts set “230V connector”, includes extension cable 9870 001046

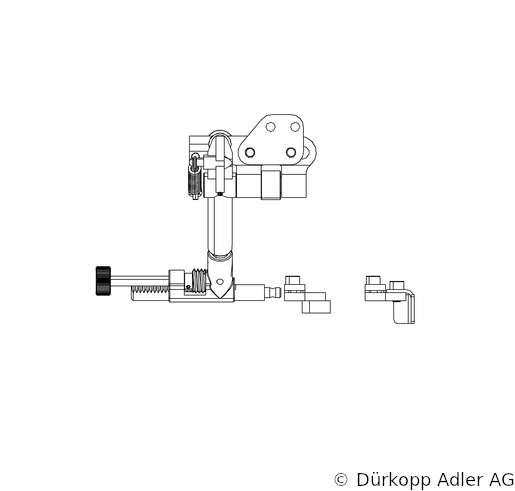

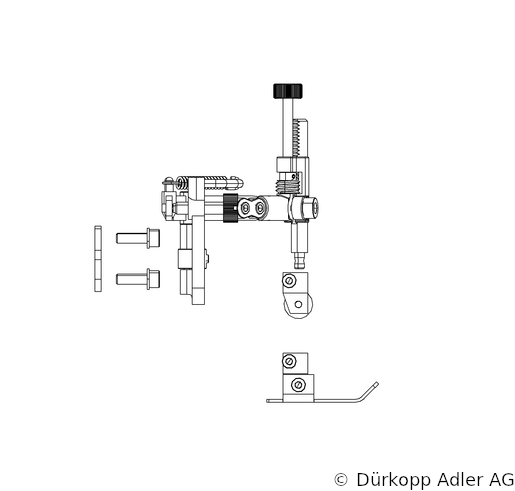

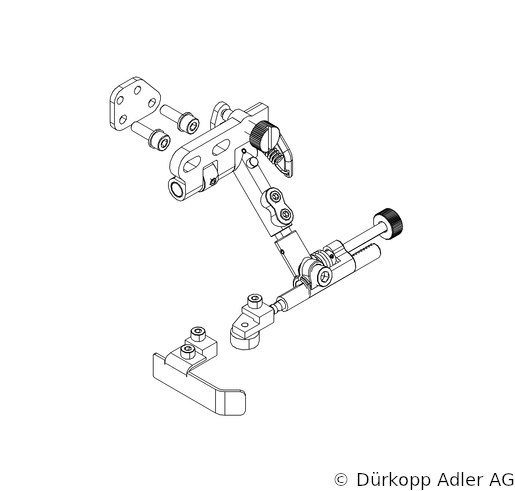

Combined hinged roller [N800 080004]:
Combined roller and straight guide, right, hinged, elevation adjustment
Russian name
867-190445-M Одноигольная машина челночного стежка с плоской платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0867 990216 052)
Specifications
| ELEKTROPODKLYUCHENIE | 1 x 190-240 V 50/60Hz |
|---|---|
| MAKSIMALNAYA_DLINA_STEZHKA_V_MM | 9 |
| KLASS | 867 |
| SUBKLASS | 190445-M |
| TIP_TRANSPORTA | Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка |
| VYSOTA_PODEMA_LAPKI | 20 |
| MATERIAL | Средние |
| TOLSHCHINA_IGLY_NM | ["120", "130", "140", "110"] |
| MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH | 3400 |
| PRIVOD | Встроенный швейный привод включая DAC классический блок управления и панель управления OP1000 |
| ART | 0867 990216 052 |
| PRODUKTSIYA | ["Мягкая мебель", "Кожгалантерея"] |

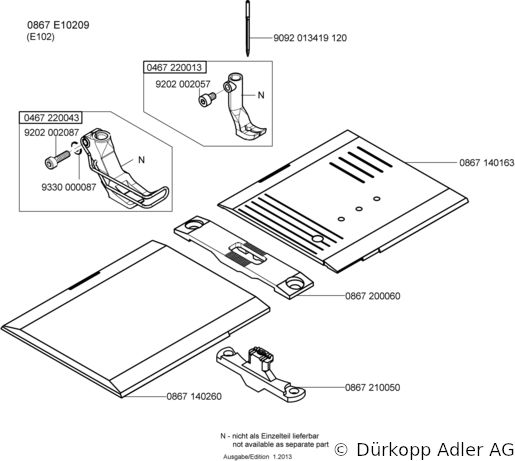

| MATERIALS | ["0867 990216", "9800 210001 R", "0791 867519", "0791 867750 EN", "0867 E10209", "0797 003031", "9780 000108", "9880 867103", "9880 867051", "MG53 007511", "MG58 000602", "MG58 002523", "0700 086780", "N800 080004"] |
| MORE_PHOTO | ["281896", "281897", "281898", "281899", "281900", "281901", "281902", "281903", "281904", "281905", "281906", "281907", "281908", "281909", "281910", "281911", "281912", "281913", "281914", "281915", "281916"] |
| TYPE_STICH | Челночный |
| KOLICHESTVO_IGL | 1 |
| TIP_CHELONOKA | Оверсайз, двойной XXL вертикальный челнок |
| OSNOVNYE_TEKHNICHESKIE_KATEGORII | С плоской платформой |
| PROIZVODITEL | Dürkopp Adler |
