867-190445-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 990216 004)

Name: 867-190445-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 990216 004)
Brand: Durkopp Adler
SKU: 0867 990216 004
Price: 18273.50 EUR
Availability: BackOrder

SKU: 0867 990216 004

Seller offers

There are no published seller offers yet.

Description

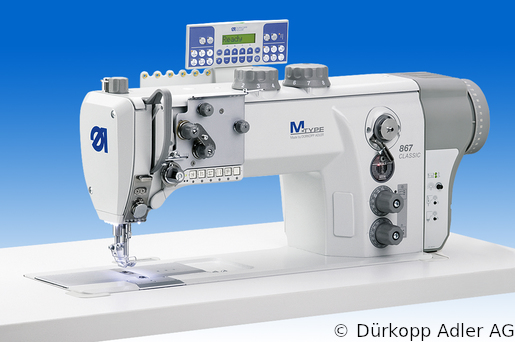

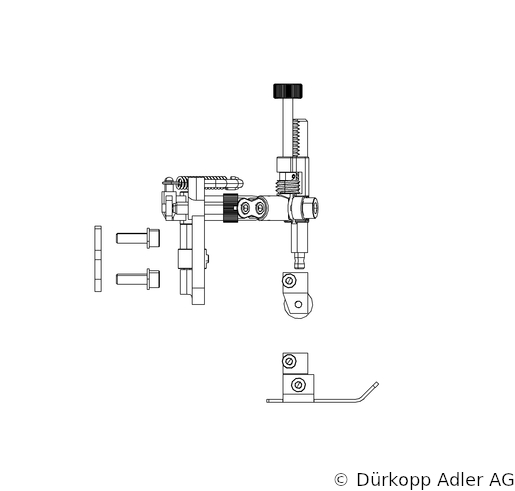

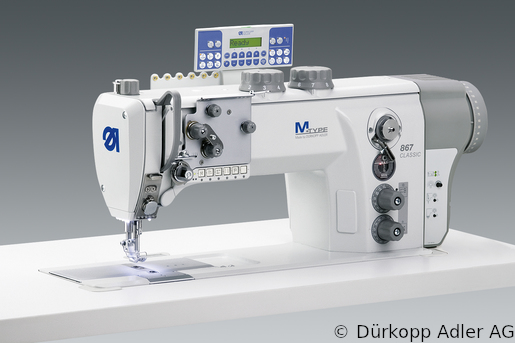

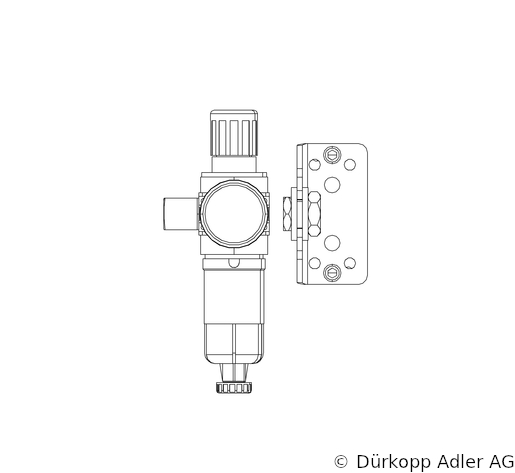

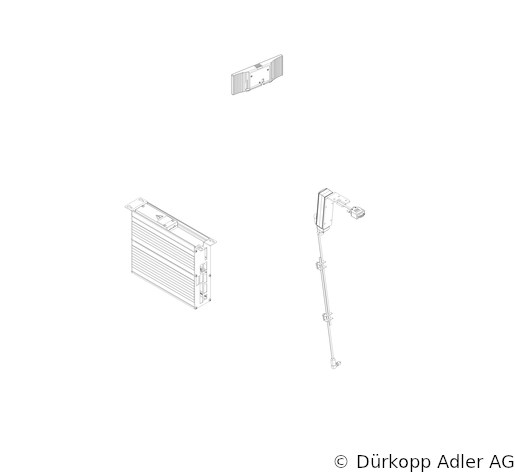

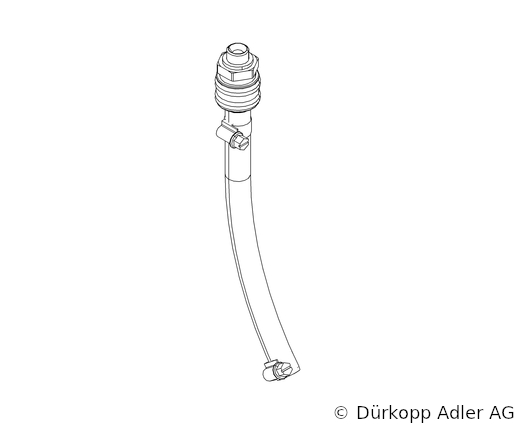

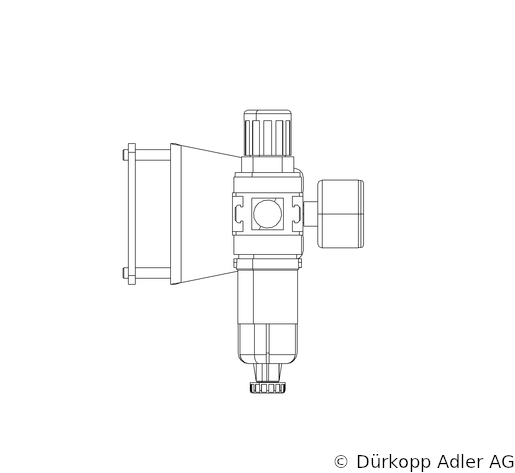

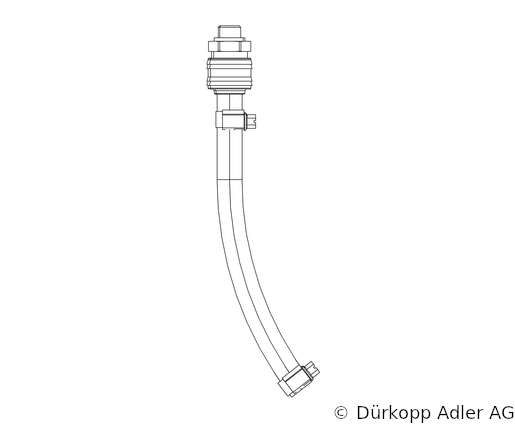

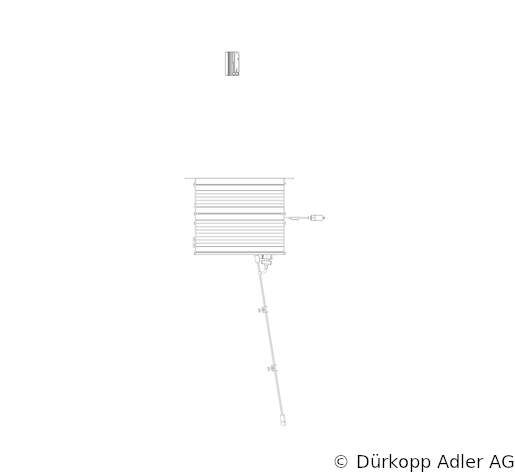

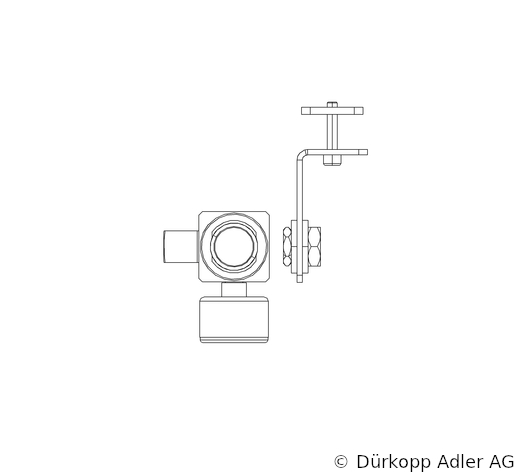

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: integrated sewing drive incl. DAC classic control box and operation panel OP1000 electromagnetic thread clamp, electromagnetic short thread trimmer with a remaining thread length of approx. 5 mm, electropneumatic quick stroke, electropneumatic seam backtacking, electropneumatic sewing foot lift, integrated 2. stitch length, integrated sewing light LED, fixable adjusting elements, safety clutch, add. electropneumatik switchable thread tension oversized, two-piece XXL vertical hook Maximum Stitch Length (in mm): 6,00 Needle thickness (nm): 110, 120, 130, 140. PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package thread monitor RFW 20-3 [0867 590114]: Photoelectric thread monitor for the remaining bobbin thread M-TYPE MAINTENANCE [9081 300001]: M-TYPE maintenance tool kit WE-8 MAINTENANCE UN [9780 000108]: Maintenance unit SEWING LAMP LED [9880 867103]: 1-LED-sewing light 3 W, incl. attaching parts, (without transformer) stand set w.table 1060*500 [MG55 400444]: Stand kit with table top 1060 x 500 mm Combined hinged roller [N800 080004]: Combined roller and straight guide, right, hinged, elevation adjustment

Russian name

867-190445-M Одноигольная машина челночного стежка с плоской платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0867 990216 004)

Specifications

ART	0867 990216 004
PRODUKTSIYA	["Мягкая мебель", "Кожгалантерея"]

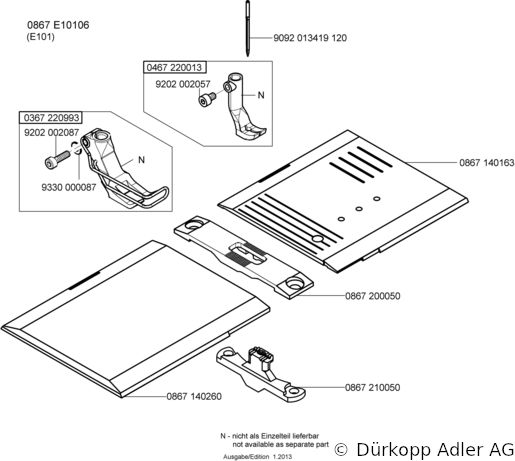

MATERIALS	["0867 990216", "9800 210001 R", "0791 867519", "0791 867750 DE", "0867 E10106", "0797 003031", "0867 590114", "9081 300001", "9780 000108", "9880 867103", "0867 990216 ZM", "MG55 400444", "N800 080004"]
MORE_PHOTO	["276329", "276330", "276331", "276332", "276333", "276334", "276335", "276336", "276337", "276338", "276339", "276340", "276341", "276342", "276343", "276344", "276345", "276346", "276347", "276348", "276349"]
TYPE_STICH	Челночный
KOLICHESTVO_IGL	1
TIP_CHELONOKA	Оверсайз, двойной XXL вертикальный челнок
OSNOVNYE_TEKHNICHESKIE_KATEGORII	С плоской платформой
PROIZVODITEL	Dürkopp Adler
TIP_TRANSPORTA	Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
VYSOTA_PODEMA_LAPKI	20
MATERIAL	Средние
TOLSHCHINA_IGLY_NM	["120", "130", "140", "110"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH	3400
PRIVOD	Встроенный швейный привод включая DAC классический блок управления и панель управления OP1000
ELEKTROPODKLYUCHENIE	1 x 190-240 V 50/60Hz
MAKSIMALNAYA_DLINA_STEZHKA_V_MM	6
KLASS	867
SUBKLASS	190445-M
