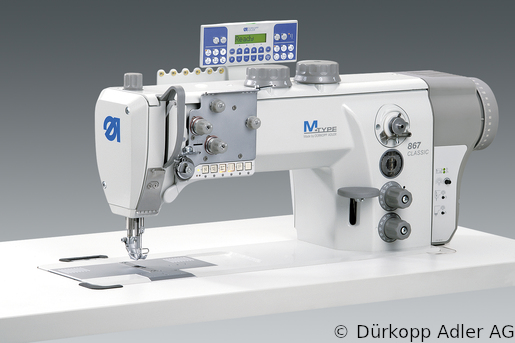

867-190322-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 990203 078)

Name: 867-190322-M Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0867 990203 078)
Brand: Durkopp Adler
SKU: 0867 990203 078
Price: 16633.75 EUR
Availability: BackOrder

SKU: 0867 990203 078

Seller offers

There are no published seller offers yet.

Description

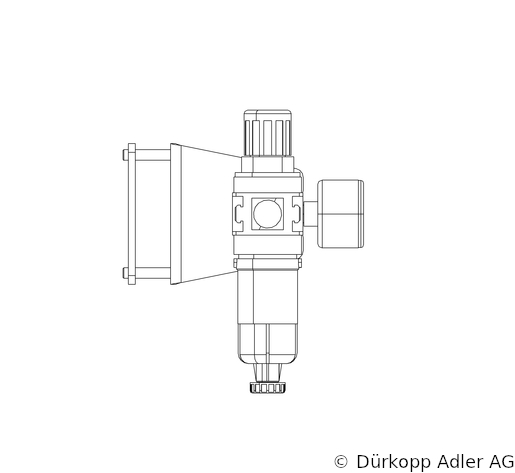

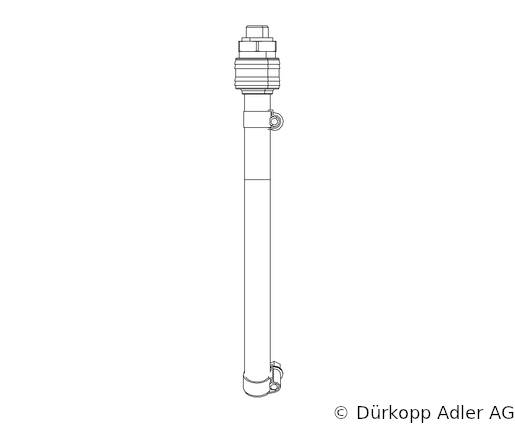

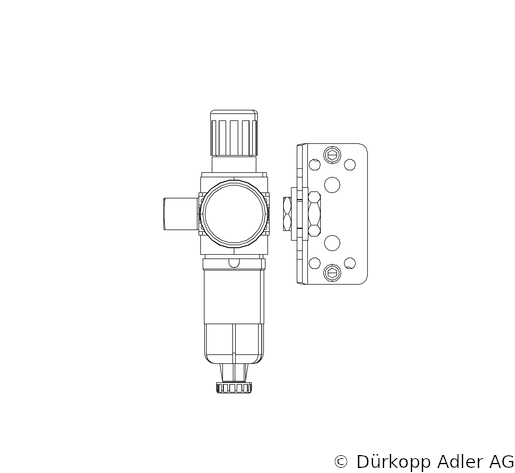

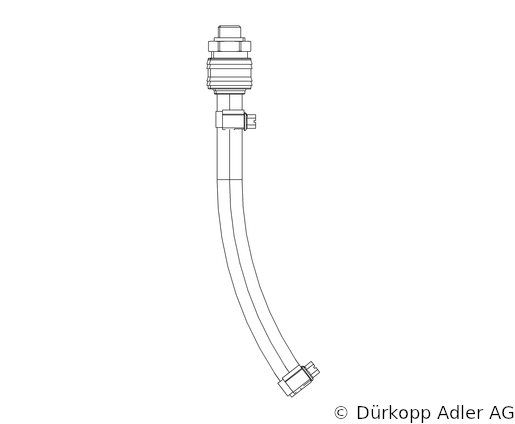

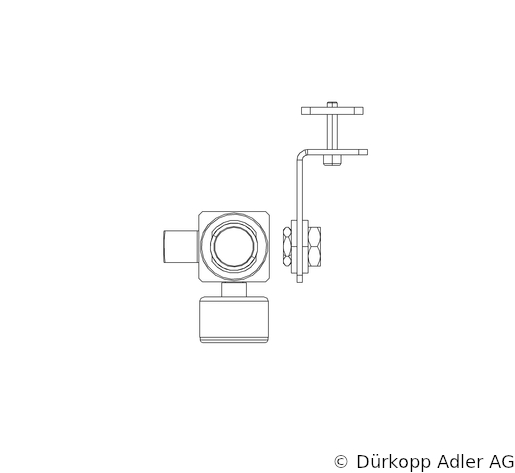

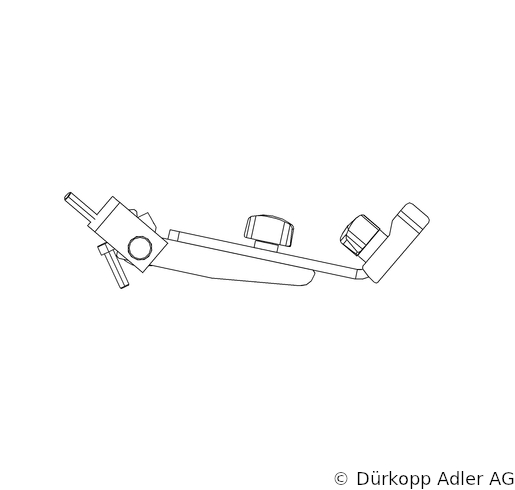

Dürkopp Adler 1-Needle lockstitch flatbed bottom feed, needle feed and alternating foot top feed. Features: integrated sewing drive incl. DAC classic control box and operation panel OP1000 lockstitch sewing head with light barrier for flap-length control, electropneumatic quick stroke, electropneumatic seam backtacking, electropneumatic sewing foot lift, integrated 2. stitch length, integrated sewing light LED, safety clutch, add. electropneumatik switchable thread tension large, two-piece vertical hook Maximum Stitch Length (in mm): 9,00 Needle thickness (nm): 140, 150, 160, 170, 180. PNEUMATIC CONNECTIO [0797 003031]: Pneumatic connection package Supplementar kit FA DURCHMESSER 26 [0867 591204]: Visual bobbin thread monitoring M-TYPE MAINTENANCE [9081 300001]: M-TYPE maintenance tool kit WE-8 MAINTENANCE UN [9780 000108]: Maintenance unit SEWING LAMP LED [9880 867103]: 1-LED-sewing light 3 W, incl. attaching parts, (without transformer) stand set w.table 1060*600 [MG55 400454]: Stand kit with table top 1060 x 600 mm SPACER hinged roller [N800 080001]: right, with roll, can be swivelled upwards

Russian name

867-190322-M Одноигольная машина челночного стежка с плоской платформой. Нижний, игольный транспортеры и верхний альтернирующий транспортер лапка Встроенный привод M-TYPE (0867 990203 078)

Specifications

ART	0867 990203 078
PRODUKTSIYA	["Мягкая мебель", "Кожгалантерея"]

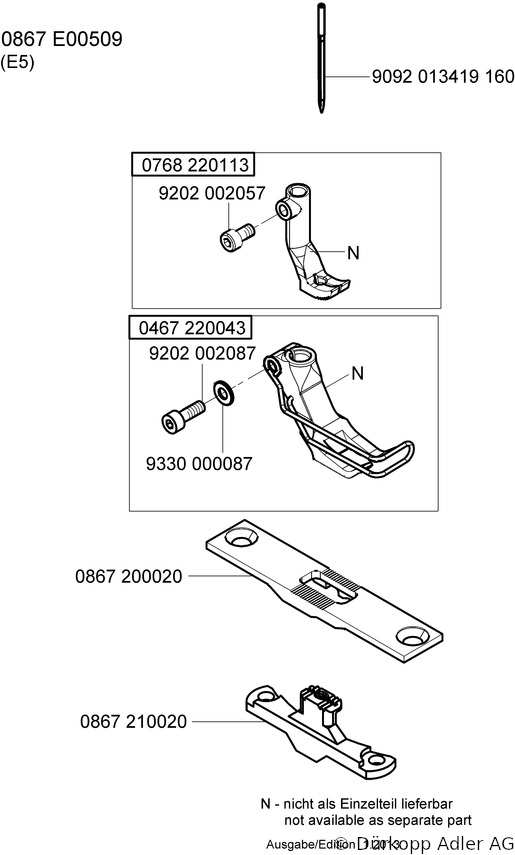

MATERIALS	["0867 990203", "9800 210001 R", "0791 867519", "0791 867750 DE", "0867 E00509", "0797 003031", "0867 591204", "9081 300001", "9780 000108", "9880 867103", "0867 990203 ZM", "MG55 400454", "N800 080001"]
MORE_PHOTO	["261624", "261625", "261626", "261627", "261628", "261629", "261630", "261631", "261632", "261633", "261634", "261635", "261636", "261637", "261638", "261639"]
TYPE_STICH	Челночный
KOLICHESTVO_IGL	1
TIP_CHELONOKA	Большой, двойной вертикальный челнок
OSNOVNYE_TEKHNICHESKIE_KATEGORII	С плоской платформой
PROIZVODITEL	Dürkopp Adler
TIP_TRANSPORTA	Нижний транспортер, игольный транспортер и альтернирующий верхний транспортер лапка
VYSOTA_PODEMA_LAPKI	20
MATERIAL	Средние
TOLSHCHINA_IGLY_NM	["140", "150", "160", "180", "170"]
MAKSIMALNAYA_SKOROST_SHITYA_V_STEZHKAKH	3800

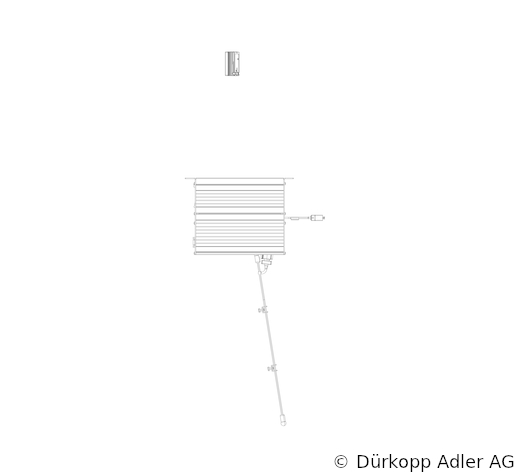

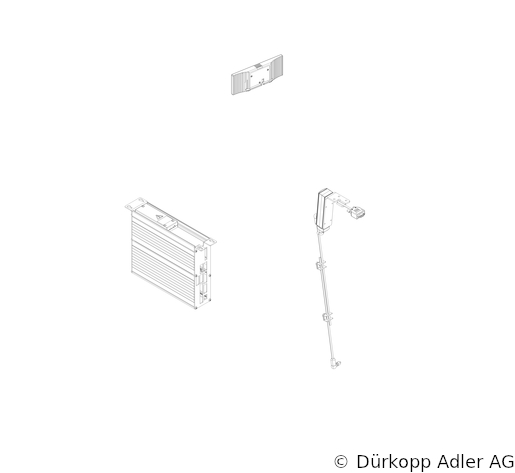

PRIVOD	Встроенный швейный привод включая DAC классический блок управления и панель управления OP1000
ELEKTROPODKLYUCHENIE	1 x 190-240 V 50/60Hz
MAKSIMALNAYA_DLINA_STEZHKA_V_MM	9
KLASS	867
SUBKLASS	190322-M
