DÜRKOPP ADLER · CLASS 868 · E51/8/9
0868 E05109 8
Complete E-equipment card
6parts
11configurations
4documents
Description
M *; -290321-M; -290322-M
Naheinrichtung, Nadelabstand 8 mm,
Nadelstéarke Nm 140-180, Stichlange
max. 9 mm, fir mittelschweres Nahgut.
Sewing equipment, needle gauge 8 mm,
needle size Nm 140-180, stitch length
max. 9 mm, for medium weight material.

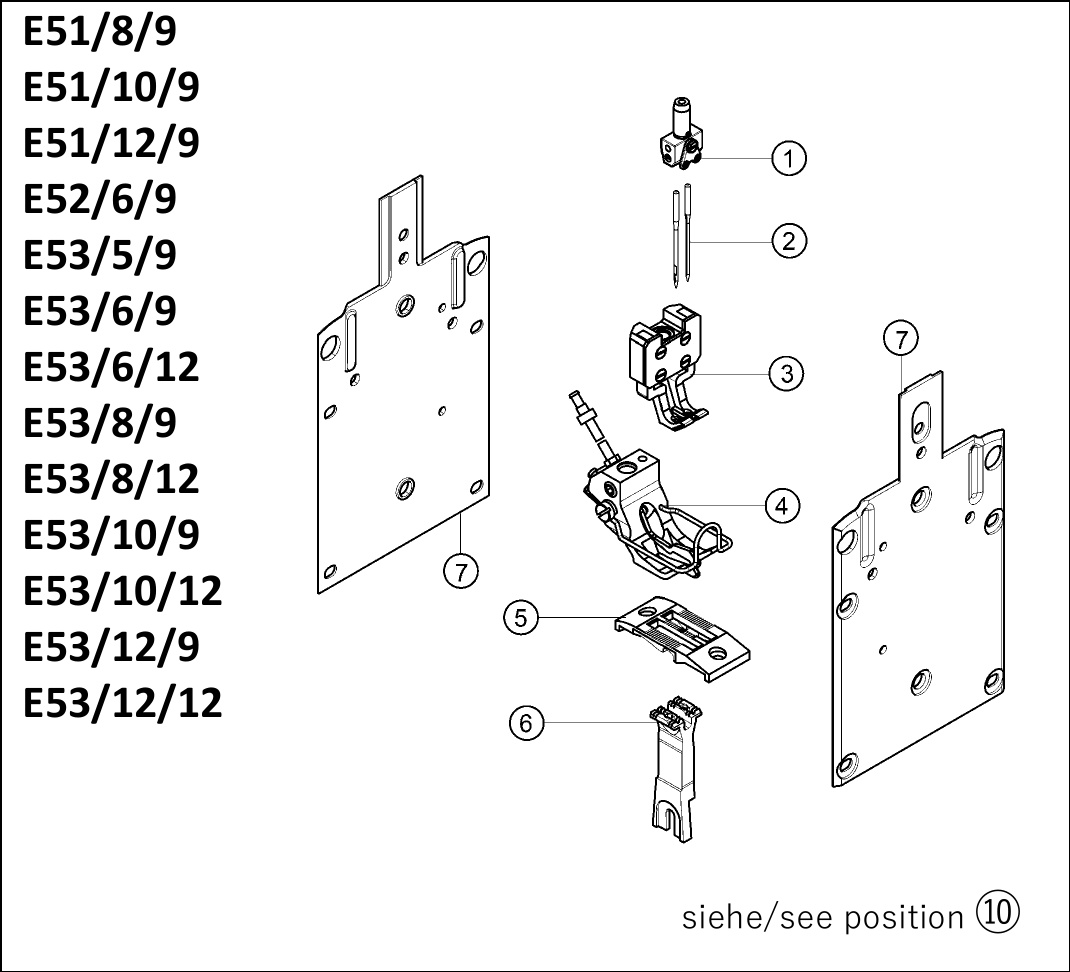

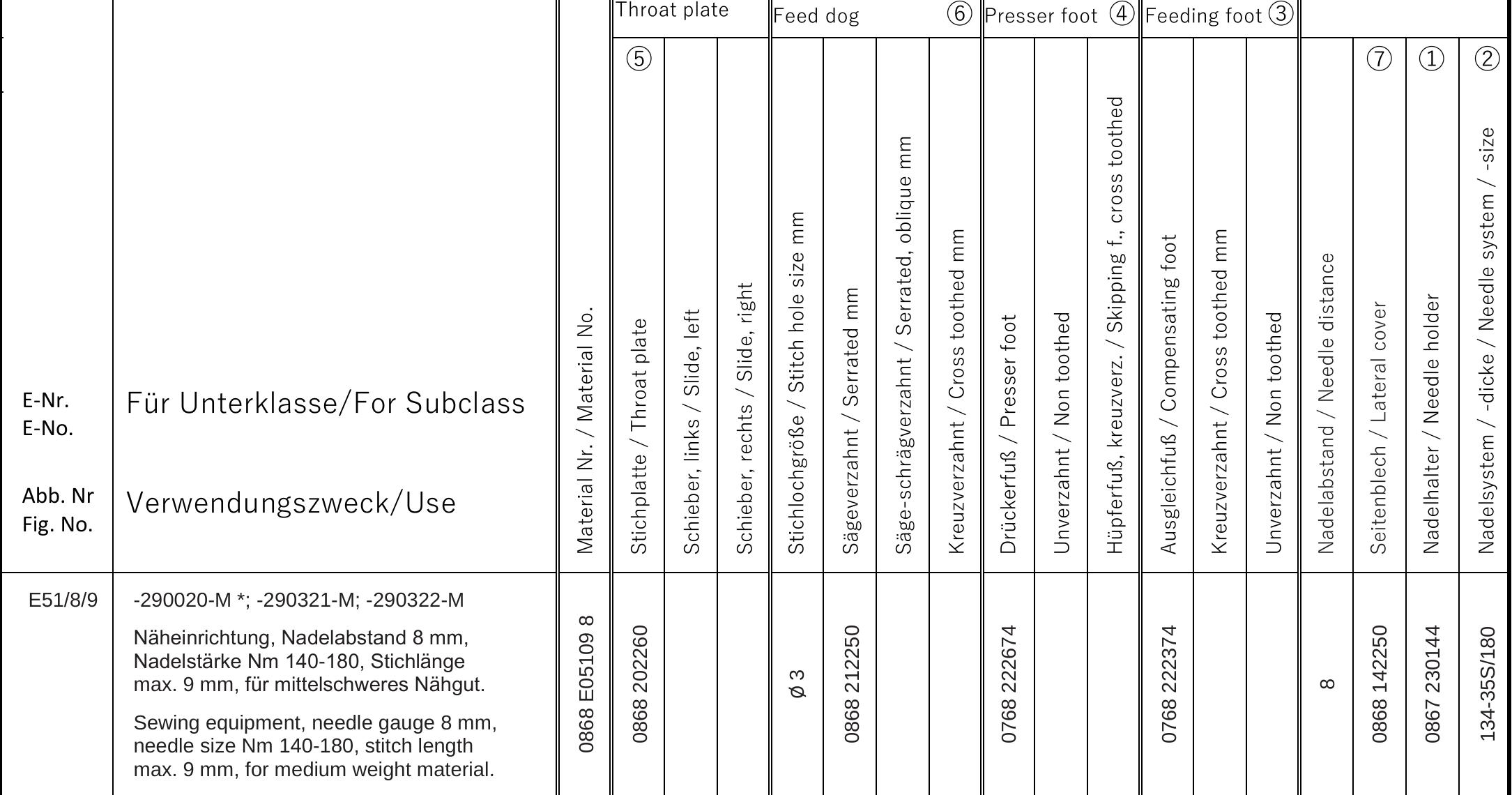

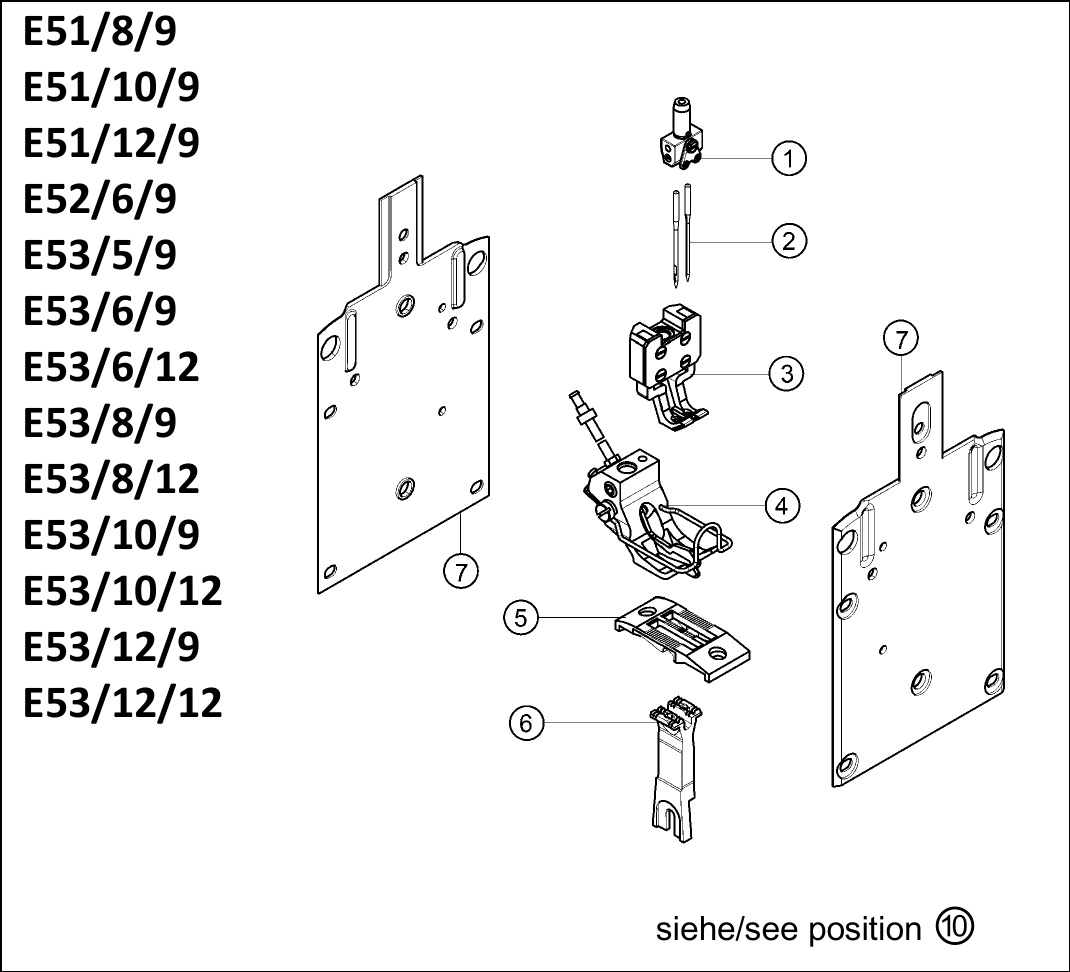

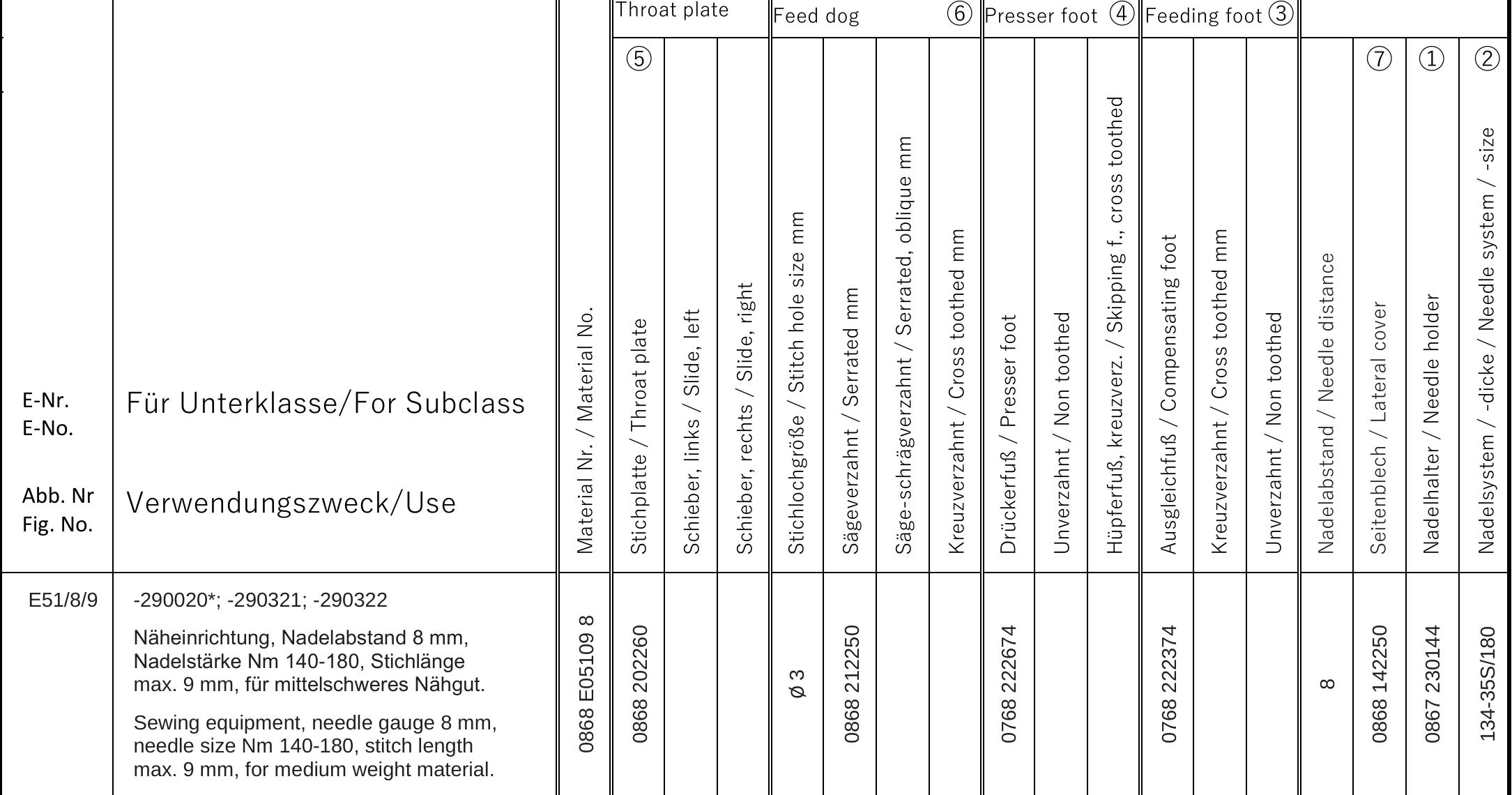

Diagrams and additional information
4
Included spare parts
6| Part number | Description | Price | |
|---|---|---|---|
| 0768 222374 | 0768 222374 — шарнирная лапка | 276.34 EUR | → |
| 0768 222674 | 0768 222674 — прижимная лапка | 425.92 EUR | → |
| 0867 230144 | 0867 230144 — иглодержатель | 189.74 EUR | → |
| 0868 142250 | 0868 142250 — боковая пластина | 76.99 EUR | → |
| 0868 202260 | 0868 202260 — игольная пластина | 79.08 EUR | → |
| 0868 212250 | 0868 212250 — зубчатая рейка нижнего транспортера материала | 88.70 EUR | → |
Compatible machine configurations
11
DÜRKOPP ADLER · 868
868-290321-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990212 023)
→
DÜRKOPP ADLER · 868
868-290322 Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed sewing machine (0868 990009 010)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 017)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 041)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 045)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 065)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 074)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 101)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 103)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 131)
→
DÜRKOPP ADLER · 868
868-290322-M Dürkopp Adler 2-Needle lockstitch post bed bottom feed, needle feed and alternating foot top feed, integrated sewing drive sewing machine (0868 990209 139)
→
