DÜRKOPP ADLER · CLASS 868 · E33/14/9

0868 E03309 14

Complete E-equipment card

6parts 0configurations 4documents

Description

M; -290322-M; -290321-M

Naheinrichtung, Nadelabstand 14 mm,
Nadelstéarke Nm 110-140, Stichlange
max. 9 mm, fir mittelschweres Nahgut

Sewing equipment, needle gauge 14 mm,
needle size Nm 110-140, stitch length
max. 9 mm, for medium weight material.

Node ID: E33/14/9
Compatible subclasses: 868, 868M
Material number: 0868 E03309 14

Diagrams and additional information

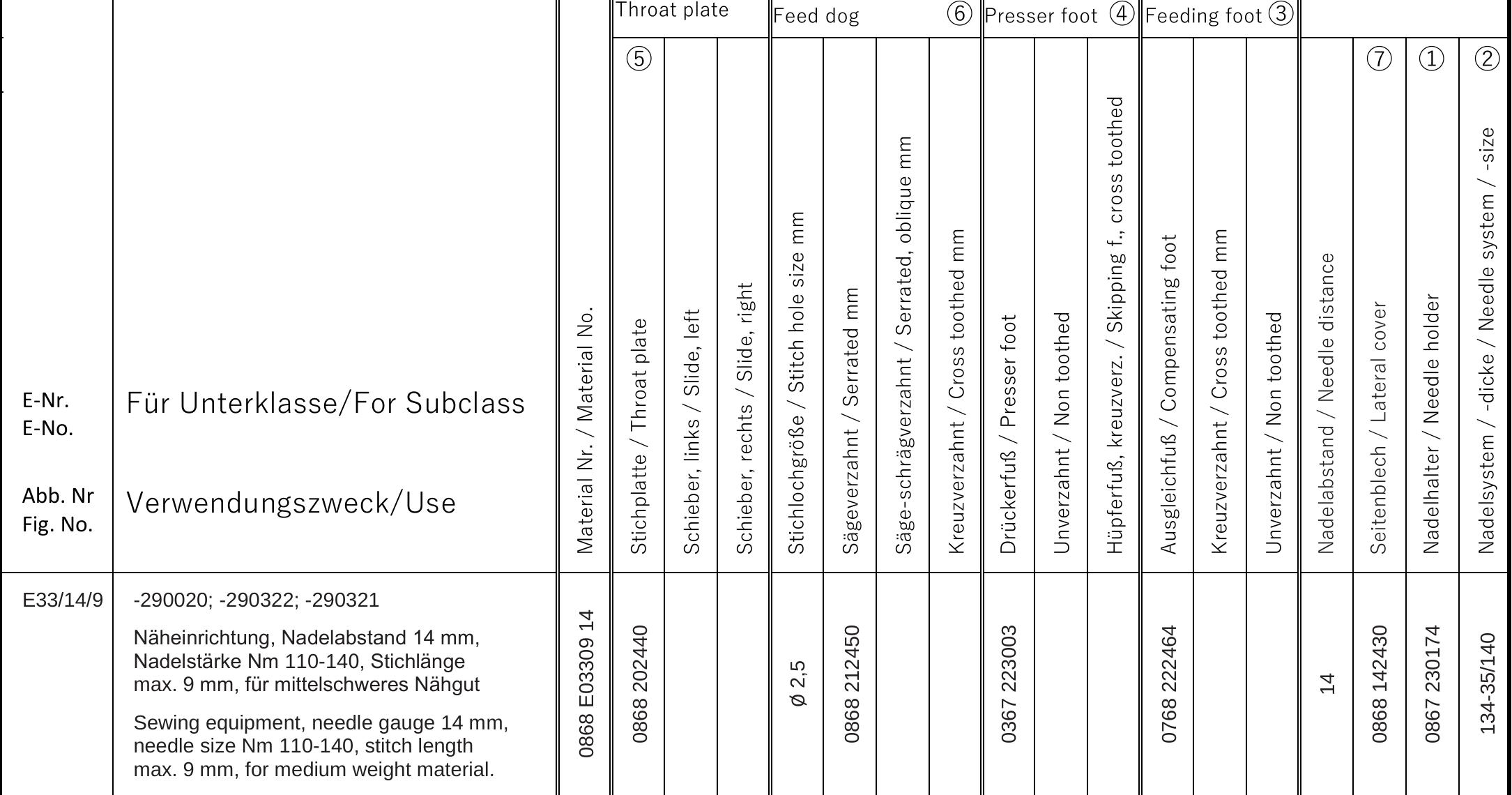

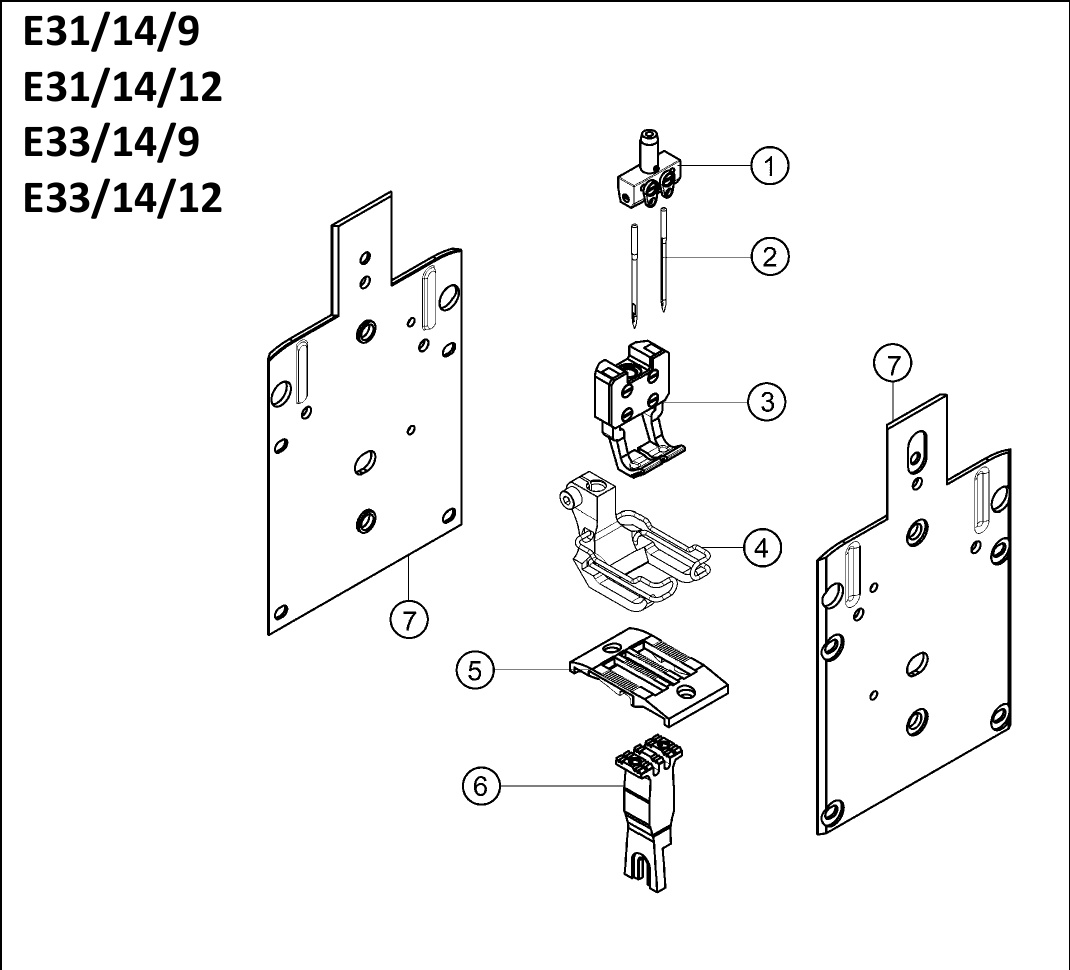

0868 E03309 14 · Schema — Diagram Open original ↗

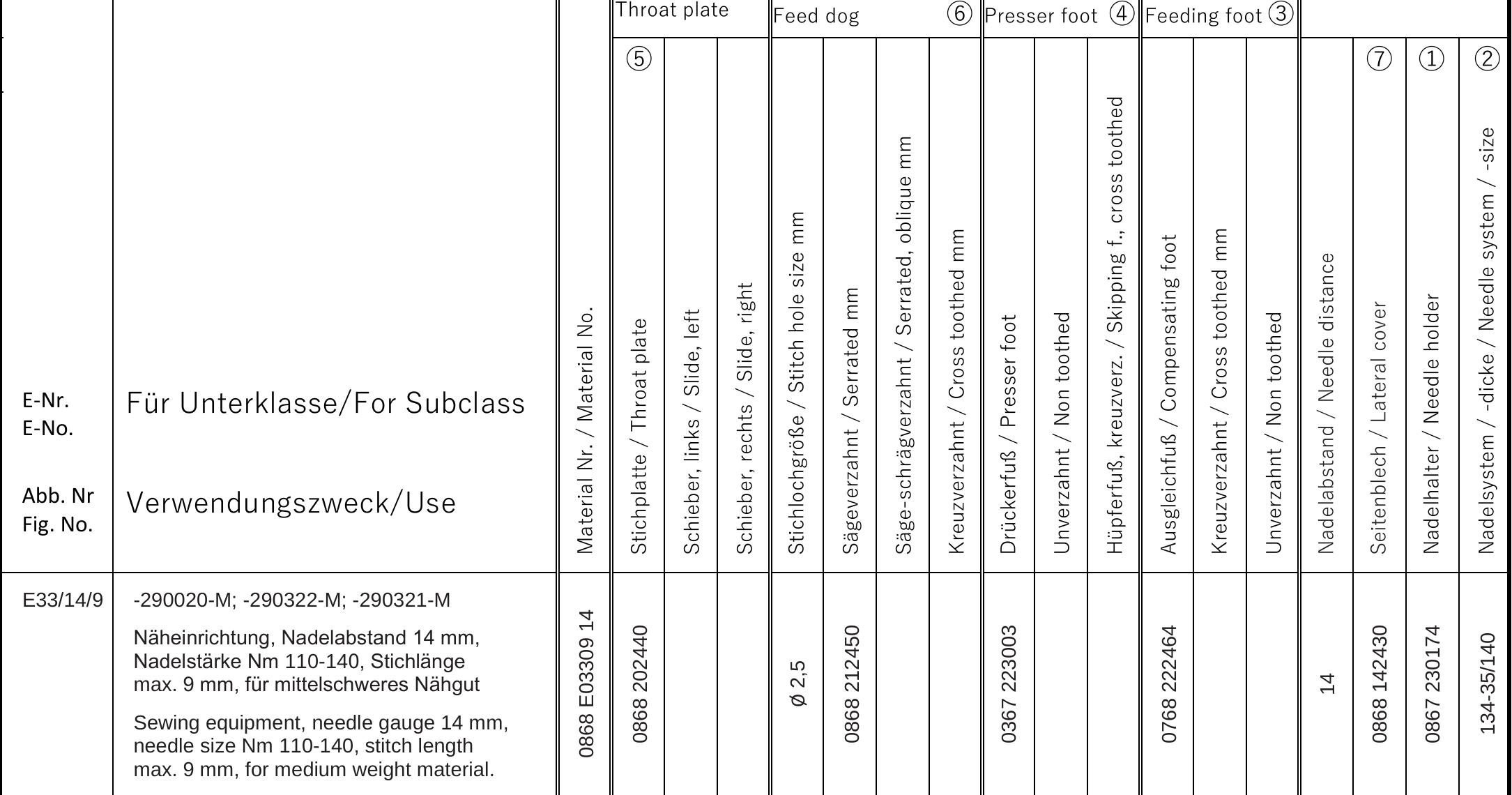

0868 E03309 14 · Additional information — Additional information Open original ↗

Included spare parts

Part number	Description	Price
0367 223003	0367 223003 — прижимная лапка	112.84 EUR	→
0768 222464	0768 222464 — компенсационная лапка	259.10 EUR	→
0867 230174	0867 230174 — иглодержатель	195.26 EUR	→
0868 142430	0868 142430 — боковая пластина	82.21 EUR	→
0868 202440	0868 202440 — игольная пластина	71.27 EUR	→
0868 212450	0868 212450 — зубчатая рейка	94.11 EUR	→

Compatible machine configurations

This E-equipment is not included in the current BUNDE machine configurations.
